UGREEN NASync DXP6800 Ultra

UGREEN states that its NAS support hot-swapping hard drives, while recommending a shutdown first for data safety

UGOS Pro can build a separate M.2 SSD storage pool on the DXP models that carry M.2 slots, instead of using them only as read or read-write cache

UGREEN publishes no expansion enclosure for the NASync range; extra hardware goes through the PCIe Gen4 x4 slot instead

UGREEN states 208TB across six 32TB SATA drives and two 8TB M.2 SSDs

UGREEN lists Docker containers among the workloads this model runs, and Docker is installed from the UGOS Pro App Center

UGOS Pro ships a Virtual Machine Manager, and UGREEN lists running virtual machines among this model's workloads

UGREEN documents Plex Media Server running through Docker on all DXP series models, with Intel Quick Sync hardware transcoding inside the container; UGOS Pro ships no separate App Center package for it

Surveillance Center handles live view, playback and alerts, and UGREEN states it supports face, people, pet and vehicle detection on this model

Local AI photo tools cover people recognition, OCR, object and scene recognition, duplicate detection, pet recognition and custom learning

The published storage modes are JBOD, Basic and RAID 0, 1, 5, 6 and 10, with no flexible mixed-drive mode

UGOS Pro offers Btrfs or EXT4 when a volume is created, and snapshot-based recovery requires Btrfs

UGOS Pro offers only Btrfs and EXT4 at volume creation

UGOS Pro ships a Snapshot app that captures point-in-time versions of files, and UGREEN lists snapshot management among this model's workloads

The Cloud Drives app syncs NAS storage with cloud services, and UGREEN lists cloud drives among this model's UGOS Pro workloads

UGOS Pro provides a dedicated Time Machine destination over SMB and Bonjour, and backs up Windows and Mac folders through Sync & Backup with the desktop client

UGOS Pro documents no one-touch USB copy app or front-panel button; an attached drive is mounted in Storage Manager and copied by a Sync & Backup task

UGOS Pro sets boot and shutdown schedules from Control Panel > Hardware & Power > Scheduled startup and shutdown

A UPS is connected from Control Panel > Hardware & Power > UPS so the NAS enters standby or shuts down safely; UGREEN publishes its own US2000 and US3000 DC units and a tested third-party compatibility list

UGOS Pro serves SMB, NFS, WebDAV, FTP and SFTP from Control Panel > File Services

SAN Manager creates block storage that connected devices mount like a local drive, and UGREEN lists it among the services this model runs

UGOS Pro lists rsync among its file protocol services, and UGREEN documents backing up to a second NAS or remote server over rsync or WebDAV

Two DDR5 slots, shipped with 8GB and expandable to 96GB per UGREEN's spec table

UGREEN's spec table lists ODECC (on-die ECC) as supported, which protects the memory chip internally rather than reporting errors to the system

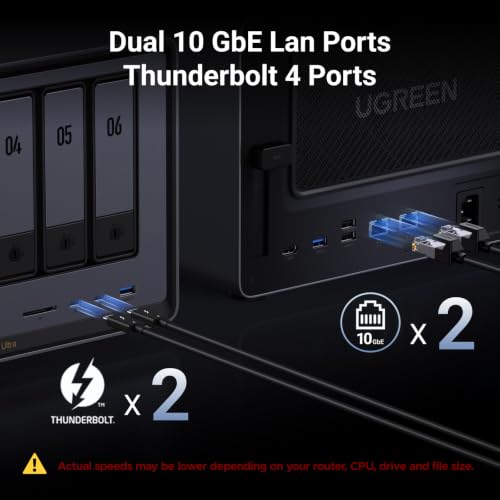

UGREEN states the two 10GbE ports can be aggregated into 20G of bandwidth for reads of up to 2500MB/s, and describes link aggregation and SMB multichannel on this range

UGREEN states that all its NAS support Wake on LAN, enabled from Control Panel > Hardware & Power > Power and triggered from the UGREEN NAS client

Two USB-A at 10Gb/s (one front, one rear) and two rear USB 2.0 at 480Mb/s, alongside the two Thunderbolt 4 ports

Two front Thunderbolt 4 ports at 40Gb/s, usable for a direct link to a workstation

HDMI 2.1 output, listed by UGREEN as 8K

Front SD 4.0 UHS-II card reader

UGREEN states 43.07 W under drive access and 24.91 W in drive hibernation

Intel lists Quick Sync Video as supported on the Core 5 120U fitted here, and UGREEN builds the 8K HDMI output and Plex transcoding around it

Intel AES New Instructions are listed as supported on the Core 5 120U

The Core 5 120U is a Raptor Lake-U Refresh part and Intel lists no AI Boost NPU for it; the local AI photo features run on the CPU and integrated graphics

UGREENlink is the built-in remote access feature, enabled from Control Panel > Device Connection > Remote access and reached through a custom ug.link address without port forwarding

UGREEN documents DDNS as the advanced alternative to UGREENlink, reaching the NAS through your own domain with router-side port forwarding

The published UGOS Pro app list carries no VPN server, and UGREEN's own remote access guide covers UGREENlink, DDNS and Tailscale, with Tailscale running in Docker and WireGuard left to the user to operate

UGREEN documents enabling SSH from Control Panel > Terminal, with root privileges through sudo
