Sonoff ZBMINIR2 Extreme Zigbee Smart Switch
Sonoff · Relays · Model ZBMINIR2
We may earn a commission from qualifying purchases through these links.
Prices and stock change often on Amazon, so we do not show them here. The button opens the current listing.
- Sonoff ZBMINIR2 Extreme Zigbee Smart Switch lists Relay Channels: 1; Resistive Maximum Load Current: 10A; Wet Contact Mode.
- Check whether the outputs are independently controlled and confirm the rating for each channel.
Browse more from Sonoff or explore all relays in our catalog.
- Recorded year
- 2024
- Recorded warranty
- 1 year

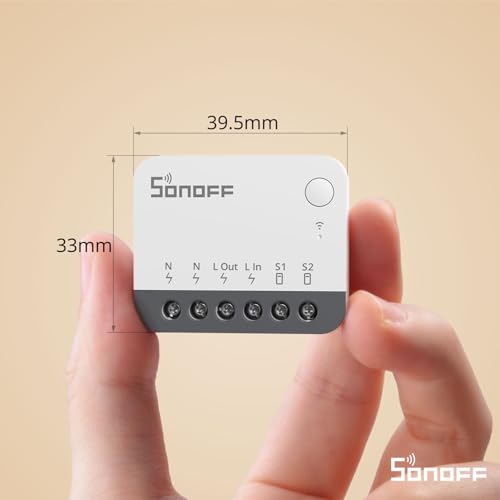

- Dimensions
- 39.5 x 33 x 16.8 mm
- Weight
- 26.7g
The details that shape your choice
Sonoff ZBMINIR2 Extreme Zigbee Smart Switch Quick Features
Start with these specifications, then check the full details and conditions below.
Make the differences clear
Which device fits your setup?
Choose another model to compare features, connections and requirements side by side.
From specification to decision
Sonoff ZBMINIR2 Extreme Zigbee Smart Switch: Capabilities And Limitations
Based on listed specifications, not hands-on testing. Manufacturer sources are linked where checked.
What it offers
A Home Assistant integration is listed, providing an integration path to verify for the exact model. Check the exact integration and firmware. A catalog integration label does not establish local control, official support or available entities.
View Home Assistant details →
What to consider
No specific limitation is established here. Check installation requirements and compatibility before choosing.
Still needs verification
Confirm these details if they matter to your setup.
Questions About Sonoff ZBMINIR2 Extreme Zigbee Smart Switch
How many relay channels does Sonoff ZBMINIR2 Extreme Zigbee Smart Switch have?
Relay Channels: 1. Check whether the outputs are independently controlled and confirm the rating for each channel.
View Relay Channels specifications →What is the resistive-load current of Sonoff ZBMINIR2 Extreme Zigbee Smart Switch?
Resistive Maximum Load Current: 10A. Verify the actual load type, voltage and installation requirements before selecting the device.
View Resistive Maximum Load Current specifications →Does Sonoff ZBMINIR2 Extreme Zigbee Smart Switch support wet-contact operation?
Yes, according to the listed specifications. Powered contacts and dry contacts serve different wiring needs. Follow the exact equipment and relay instructions.
View Wet Contact Mode specifications →Does Sonoff ZBMINIR2 Extreme Zigbee Smart Switch support Matter?
Matter is listed as “SONOFF Hub required”. The stated condition applies to this feature. Verify the exact device type, firmware and features exposed in your chosen platform. Matter support is not proof of feature parity. The device is not Matter itself: SONOFF lists it among the Zigbee models its Matter bridges (Zigbee Bridge Ultra, iHost, NSPanel Pro) republish into Matter.
View Matter specifications →Does Sonoff ZBMINIR2 Extreme Zigbee Smart Switch work with Home Assistant?
Yes, according to the listed specifications. Check the exact integration and firmware. A catalog integration label does not establish local control, official support or available entities.
View Home Assistant specifications →Explore the full picture
Sonoff ZBMINIR2 Extreme Zigbee Smart Switch Specifications
Recorded catalog values. Expand notes for qualifications; unknown values are not treated as missing features.
0 of 46 fields matched to manufacturer documentation. Source checks apply only to the named model and stated scope. Other fields remain catalog data. How we verify specifications →
Features12 fields
| Relay Channels | 1 |
|---|---|
| Energy Monitoring | No |
| Power Off Memory | Yes |
| Wireless Switch Mode | No |
| Dry Contact Mode | No |
| Wet Contact Mode | Yes |
| Interlock Mode | No |
| Din Rail Mount | No |
| On Off Button | Yes |
| Automations | Yes |
| Zigbee Router | YesDetails & conditionsA reliable connection is crucial for your Zigbee network. ZBMINIR2, as a Zigbee router device with Turbo Mode, boosts signal strength and expands coverage for optimal performance. |
| Ota | Yes |
Power17 fields
| Ac Power | Yes |
|---|---|
| Ac Load Voltage | 100-240 V |
| Resistive Load | Yes |
| Resistive Maximum Load Power | 2400W |
| Resistive Maximum Load Current | 10A |
| Inductive Load | No |
| Inductive Maximum Load Power | Not applicable / unspecified |
| Inductive Maximum Load Current | Not applicable / unspecified |
| Capacitive Load | No |
| Capacitive Maximum Load Power | Not applicable / unspecified |
| Capacitive Maximum Load Current | Not applicable / unspecified |
| Dc Power | No |
| Dc Maximum Load Power | Not applicable / unspecified |
| Dc Maximum Load Current | Not applicable / unspecified |
| Dc Load Voltage | Not applicable / unspecified |
| Neutral Required | Yes |
| Idle Consumption | Not recorded |
Connectivity7 fields
| 2.4 GHz Wi-Fi | No |
|---|---|
| 5 GHz Wi-Fi | No |
| Bluetooth | No |
| Z Wave | No |
| Zigbee | Zigbee Hub required |
| Thread | No |
| Radio Frequency | No |
Integrations6 fields
| Google Home | Yes |
|---|---|
| Alexa | Yes |
| Apple Home | SONOFF Hub requiredDetails & conditionsSONOFF lists this model among the Zigbee devices its Matter bridges (Zigbee Bridge Ultra, iHost, NSPanel Pro) publish to Matter, which is how it reaches the Apple Home app. Apple Home has no Zigbee radio of its own. |
| SmartThings | Yes |
| Home Assistant | Yes |
| Matter | SONOFF Hub requiredDetails & conditionsThe device is not Matter itself: SONOFF lists it among the Zigbee models its Matter bridges (Zigbee Bridge Ultra, iHost, NSPanel Pro) republish into Matter. |
Safety Features4 fields
| Overheating Protection | Not recorded |
|---|---|
| Overvoltage Protection | Not recorded |
| Overcurrent Protection | Not recorded |
| Overpower Protection | Not recorded |
How this device compares
Sonoff ZBMINIR2 Extreme Zigbee Smart Switch vs Other Similar Models
Statistical context from 48 relays in this catalog. These figures describe our recorded data, not independent measurements.
Recorded feature coverage
On Off Button: 17 of 34 known answers are Yes
Features: 50% among explicit Yes/No answers; 14 of 48 devices have no resolved answer. Check the specifications for this model’s conditions.
Recorded feature coverage
Zigbee Router: 29 of 48 known answers are Yes
Features: 60% among explicit Yes/No answers; 0 of 48 devices have no resolved answer. Check the specifications for this model’s conditions.
Recorded feature coverage
Ota: 35 of 38 known answers are Yes
Features: 92% among explicit Yes/No answers; 10 of 48 devices have no resolved answer. Check the specifications for this model’s conditions.
Brand representation in this directory
13 of 48 models are from Sonoff
Counts relays listed here, not sales or market share. Catalog inclusion does not imply a recommendation.
Side-by-side specification comparison
Compare Sonoff ZBMINIR2 Extreme Zigbee Smart Switch vs Similar Relays
See how Sonoff ZBMINIR2 Extreme Zigbee Smart Switch stacks up against other relays in this catalog. Compare specifications, compatibility and pricing.
Catalog specifications have not all been independently checked against manufacturer sources. Read our data and evidence methodology.
